What Does an MVR Evaporator Mean? Definition and Working Principle

Core Definition

MVR evaporator is currently the most energy-efficient mainstream equipment for high-salinity wastewater concentration and material evaporation. A single-effect MVR system can achieve or even exceed the energy savings of multi-effect evaporation, earning it the title of "the energy-saving king of evaporation." It is widely used in environmental protection, chemical, pharmaceutical, food, and new energy industries.

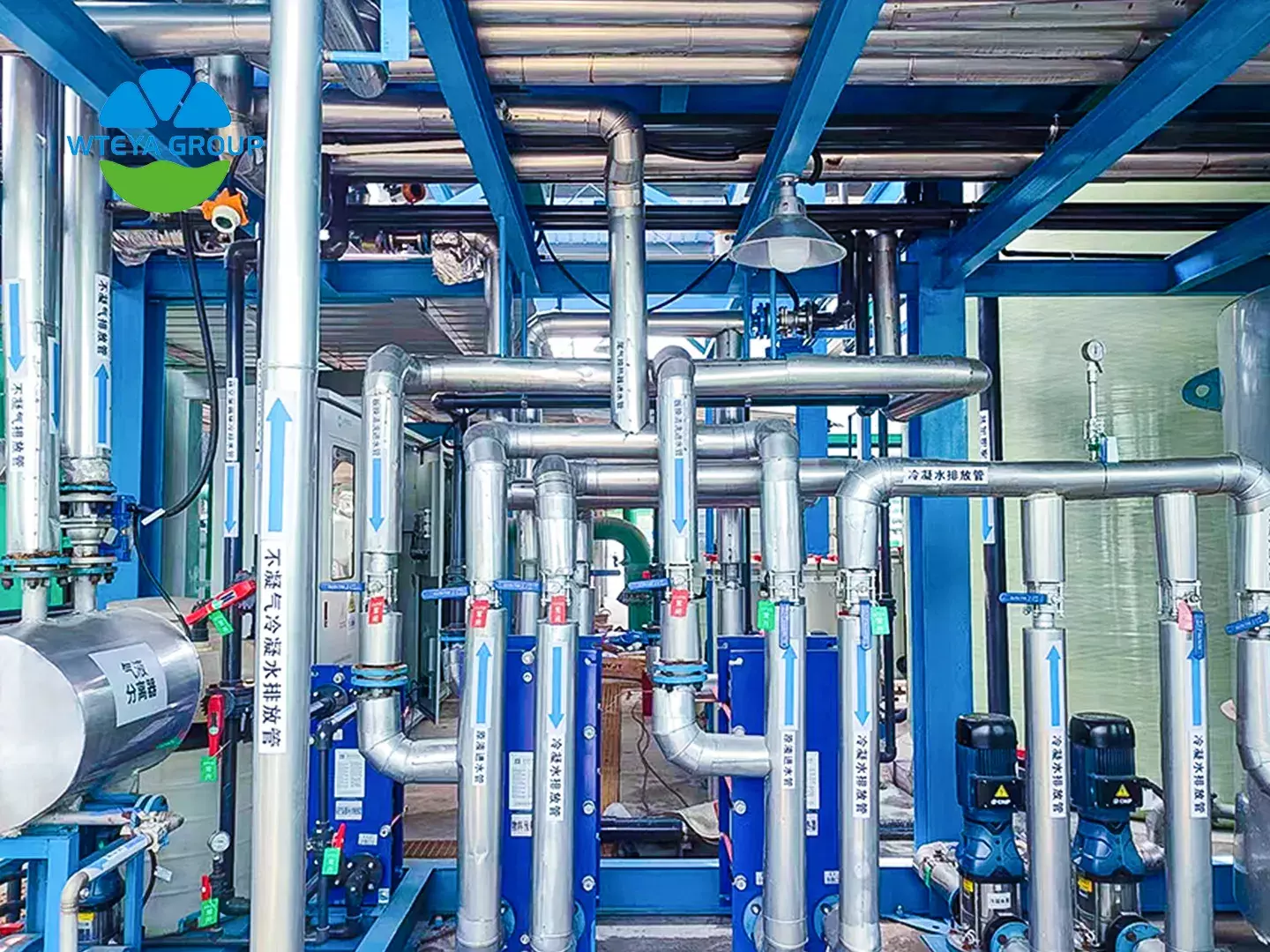

Core Components

Steam Compressor — The "heart" of the system, compressing secondary steam from evaporation temperature (e.g. 60°C) to heating temperature (e.g. 75°C). Three types: Roots blower (small flow), centrifugal (large flow), screw (medium flow, high compression ratio).

Heater / Heat Exchanger — Compressed high-temperature steam condenses on the shell side, heating the process liquid. Types: shell-and-tube, plate, falling-film; materials: 316L, 2205 duplex steel, or titanium.

Evaporation Separation Chamber — Where liquid boils and vaporizes. Forced circulation preferred for high-salinity, scale-prone wastewater.

Vapor-Liquid Separator — Built-in mesh demister intercepts droplets, keeping compressor inlet steam clean.

Vacuum System — Vacuum pump plus condenser maintains negative pressure (e.g. -60 to -80 kPa) to lower the boiling point.

Control System — PLC with touchscreen/HMI, automatic feed and discharge adjustment.

How It Works

1. Raw liquid is preheated and enters the evaporation system, exchanging heat with the high-temperature compressed steam in the heater.

2. The liquid absorbs heat, boils, and vaporizes, producing large amounts of secondary steam.

3. Secondary steam passes through the vapor-liquid separator and enters the steam compressor.

4. The compressor raises its temperature and pressure (typical temperature lift 5–15°C, up to 20°C).

5. The superheated steam condenses in the heater shell, releasing heat to drive the next evaporation cycle; condensate is recovered as distilled water.

6. The liquid keeps concentrating until it reaches the target concentration, then is discharged by the product pump. The system runs continuously, needing only a small amount of steam or electric heating for startup preheating.

Key Advantages

Outstanding energy savings — Saves 60–70% vs single-effect evaporation, 30–40% further vs triple-effect. Power consumption: only 30–80 kWh per ton of water evaporated.

Low operating cost — Electricity replaces steam; no boiler or large fresh steam supply needed.

Compact and modular — Skid-mounted design saves 30–50% footprint vs multi-effect systems.

High automation — One-touch start/stop with interlock protection, can run unattended.

Excellent water quality — Condensate is pure distilled water with conductivity below 10 μS/cm, directly reusable in production.

Low-temperature friendly — Vacuum operation enables 30–80°C evaporation, safe for heat-sensitive materials.

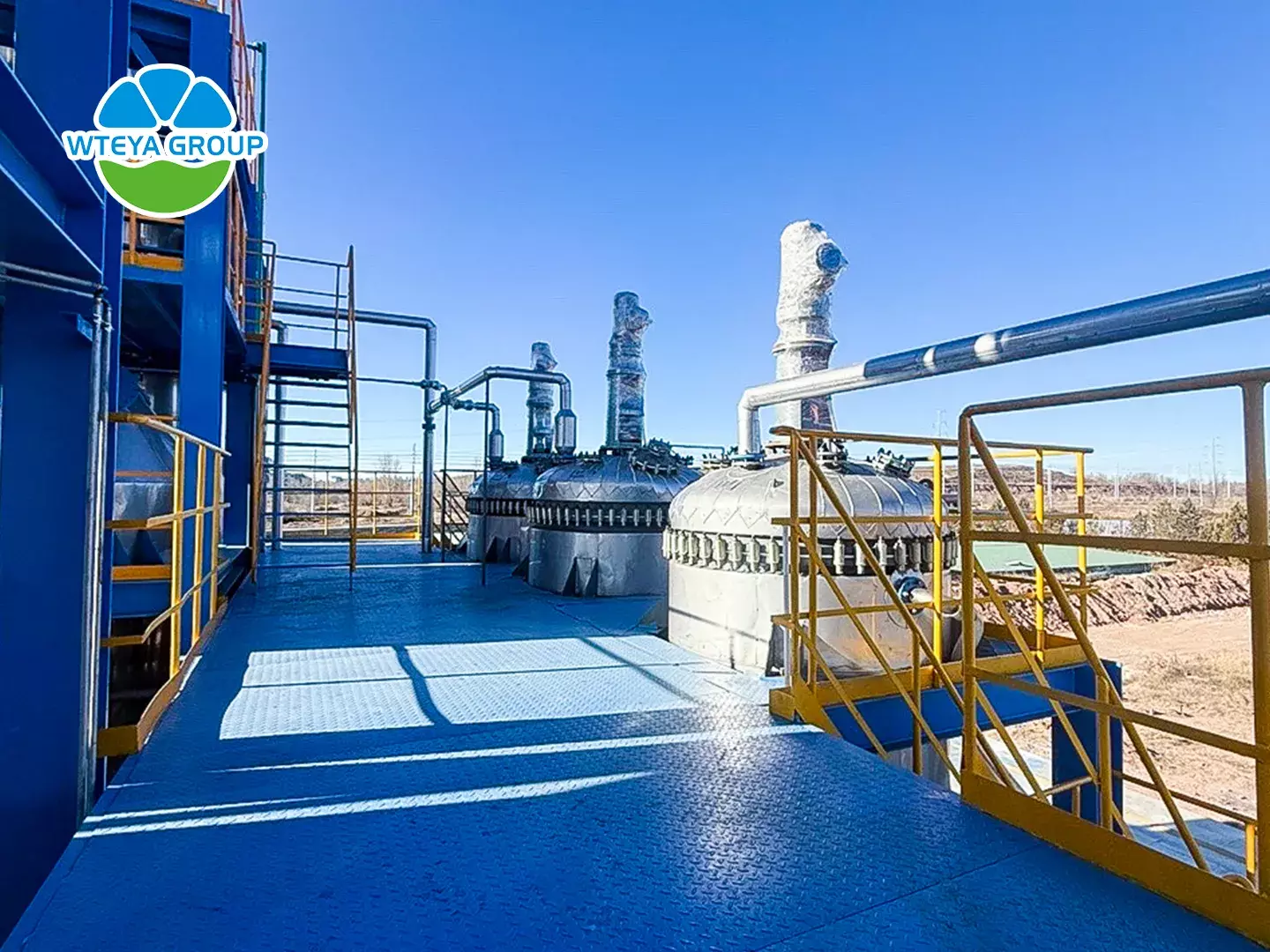

Where MVR Evaporators Are Used

High-salinity wastewater — Electroplating, printing & dyeing, papermaking, coal chemical brine, desulfurization wastewater with TDS above 2%.

Material concentration — Chemical and mineral concentrates, food-industry process streams.

Resource recovery — Crystallization and recovery of ammonium sulfate, sodium chloride, sodium sulfate salts.

Zero liquid discharge front-end — The core concentration unit of zero liquid discharge (ZLD) systems, paired with crystallizers for solid waste conversion.

Why Choose WTEYA

WTEYA has 20 years of experience in industrial wastewater treatment, with 100+ real-world MVR and ZLD projects across chemicals, lithium batteries, electroplating, PCB, and landfill leachate industries. Every system is custom-designed based on your actual water quality analysis — not a one-size-fits-all standard machine.
